Serried Vertical Wire Fence ,Security 358 Fence ,Weld 358 Wire Fence

Product Categories
Top Fencing Co.Limited
Contact Now

Serried Vertical Wire Fence ,Security 358 Fence ,Weld 358 Wire Fence

Brand Name : LNF-Clear View Fencing

Model Number : 3.00mm wire 4.00mm wire 12.70mm*76.20mm

Certification : ISO

Place of Origin : South African Design China Made

MOQ : 500 liner meter

Price : 18.88$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Size : 1800mm -4000mm

Width : 2200mm -2500mm

Color : Galvanized ,RAL 6005 ,RAL 9003

Treatment : Powder Coated ,HDG

Material : Low-Carbon Iron Wire,Galvanized Iron Wire,Stainless Steel Wire,PVC Coated Steel Wire,Galvanized Steel Wire

Wire gauge : 3.0-6.0mm

Surface treatment : PVC Coated PVDF Coated oxidation,galvanized,white color,Electric galvanized and powder painted

Technique : Welded Mesh

Product name : security 358 welded wire mesh anti climb fence

Feature : Easily Assembled,Eco Friendly,Skilled Welded by High Quality

Wire diameter : 3.5-5.0mm

Usage : Anti-climbing,fence

Aperture : 76.2X12.7mm,76.2x12.7mm/12.5x75mm/'3"x1/2",20x20mm 50x50mm 50x100mm,1/2"---4"

Packing : Plastic film +pallet,Bulk Package

Height : 3.0-5.5mm

Finish : Galvanized or Polyster powder coated,zinc coated and polyester powder coated,PVC-coatd Welded Wire Mesh

Post : 100x60x3mm,75mm*75mm,80x80x2.5mm,80mm*80mm,Peach Post

Contact Now

Serried Vertical Wire Fence, Security 358 Fence , Weld 358 Wire Fence

South Africa Clearvu Anti Climb Prison Fence Panels 358 Wire Mesh Anti-Climb High Security Fencing

Serried Vertical Wire Fence ,Security 358 Fence ,Weld 358 Wire Fence

358 security fence is also called anti climb fence which is the ultimate heavy duty welded mesh panel providing the highest degree of security with excellent see through visibility. 358 security fence has toe and finger proof profile. With spacing specification of 75mm x 12.5mm, it is impossible for fingers and toes to go through. Our 358 security fence is perfect as a guarded fence system because of its exclusive thickness, anti-cutting materials and its framework is very strong resistant and hard to uninstall. With our excellent anti-climb fence supply, clients can enjoy the greatest relaxation and secured protection from inside of your own.

Specification

Opening Wire Dia. Width Surface Treatment Height Fitting
12.7*76.2mm

3.0mm

3.5mm

4.0mm

2000mm

2200mm

2500mm

1. Electric galvanized then powder coating

2. Hot dip galvanized

1000mm

1200mm

1500mm

1800mm

2000mm

2200mm

2400mm

3000mm

Flat bar

Metal clips

Installation

Serried Vertical Wire Fence ,Security 358 Fence ,Weld 358 Wire Fence

Serried Vertical Wire
Height:1800-4000mm
Width:2.2m&2.5m
Wire:4.0mm(popular)
Mesh:76.2×12.7mm
Post:60×80mm&80×80mm(popular)
Surface:Hot dipped galvanized&Powder coating
Other size are available.
  • Serried vertical wire fence is composed with the quadrate post or circular post and high strength welded wire fence; Welded wire fence using the high-quality steel wire to welded. Dia 3.0----4.0mm, Mesh size designed as 12.7(Vertical wire to wire to or centre to centre)*76.2mm(horizontal wire to wire or centre to centre); Welded point have high tensile strength. And better planeness. The surface has a strong erosion resistance and anti-ultraviolet; Connect by screw flat bar, the installation is very easy and convenience
    Serried vertical wire fence features
    ● Width from 2100----2600 all available.
    ● Serried vertical wire fence, have a good ability to anti-climb and anti-cut.
    ● Wire diameter:from3.0 ------to 4.0mm
    ● Hot dipped galvanized after fabricated
    ● Hot dipped galvanized after fabricated and then powder sprayed coating.
    ● Hot dipped galvanized wire welded and then powder sprayed coating.
    ● Extra choose the barbed wire or razor wire fence make more security.
    Serried vertical wire fence application

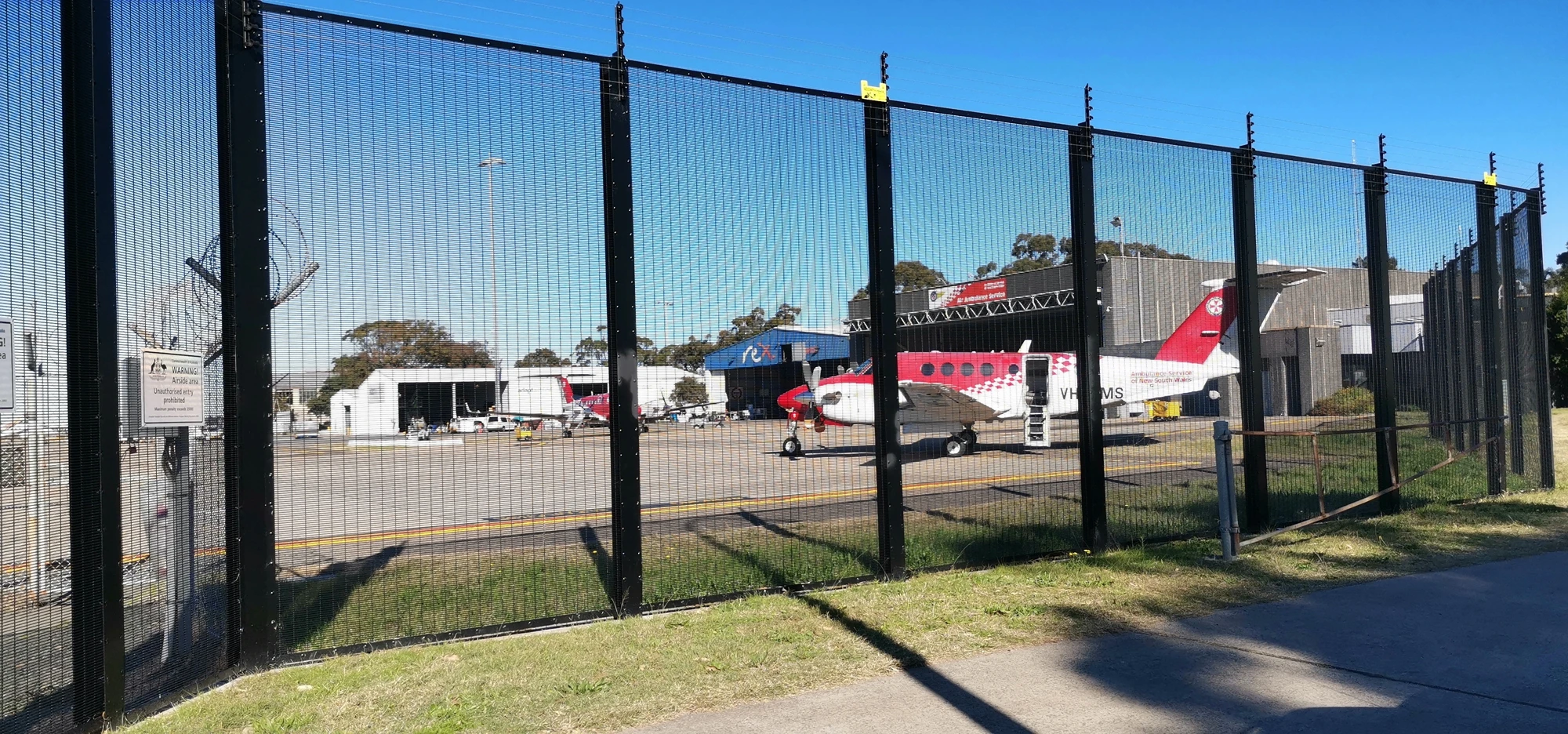

    It is often used in Power station, Commonality construction, Jail, Airport, Military base, Country border and other high-security area and place.
  • Fence height(mm) Fence width(mm) Wire Diameter (mm) Mesh size (mm) Square Post Section(mm) Circular Post(mm) Post Height (mm)
    1220 2500 3.0 76.2×12.7 60×60 ×2.0 60×2.0 1600
    1500 2500 3.0 76.2×12.7 60×60 ×2.0 60×2.0 1900
    1800 2500 3.0 76.2×12.7 75×75 ×2.0 75×2.0 2200
    2100 2500 4.0 76.2×12.7 80×80 ×2.0 89×2.0 2600
    2400 2200 4.0 76.2×12.7 80×80 ×2.0 89×3.0 3000
    3000 2200 4.0 76.2×12.7 100×100×3.0 89×3.0 3600
Mesh panel using high-quality low carbon steel wire and welded by a computer-controlled machine. Post using the international standard tube as material (60×60×2.0mm, 75×75×3.0mm,80×80×3.0mm,100×100×3.0mm or Dia 60×2.0,89×3.0mm )

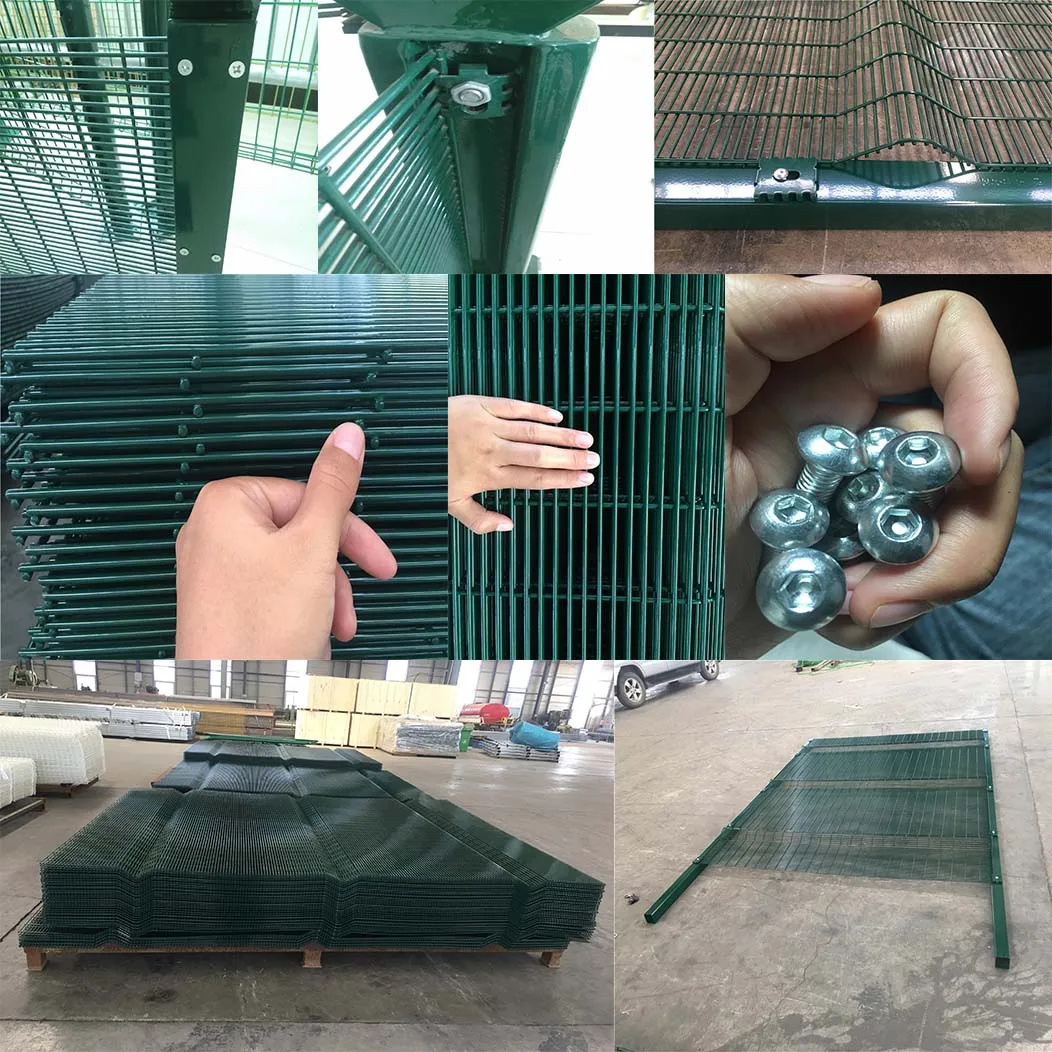

Fixings: steel brackets or flat bar, Self-break bolts adopting Stainless or Hot dipped galvanized.
Surface: Fence can use pre-hot dipped galvanized wire or tube fabricate and after several clear procedures. We use famous international powder (AkzoNobel)sprayed. In that case, can be got strongly resist the corrosive and ultraviolet radiation. Double coating layer high-quality anti-corrupt. The longevity will 10 years long.
Hot dipped galvanized after fabricated, The Zn can be got 500----60g/m2. Longevity will be got more than 15 years.
Serried Vertical Wire Fence ,Security 358 Fence ,Weld 358 Wire FenceSerried Vertical Wire Fence ,Security 358 Fence ,Weld 358 Wire FenceSerried Vertical Wire Fence ,Security 358 Fence ,Weld 358 Wire Fence
